Data
AIMBAT treats input data as read-only. Processing parameters and results are stored separately from the data in a database. Once imported into a project, the data sources (e.g. SAC files) are only used to read the waveforms. All metadata (e.g. event and station information) is stored in the database.
Data hierarchy
Moving away from storing all data in individual files means things are organised differently. For example, a seismogram in AIMBAT is no longer a file; it is an object in the database that links to a data source, station and event. Stations and events are also objects in the database, and they are shared between seismograms.
---
title: AIMBAT data hierarchy
---
erDiagram
EVENT ||--o{ SEISMOGRAM : "used by"
STATION ||--o{ SEISMOGRAM : "used by"
SEISMOGRAM ||--|| "DATA SOURCE" : uses
Tip
Seismograms that are supposed to be processed together are identified only by their shared event and station in the database. You can therefore be quite flexible in how you organise your data on disk, but you must make sure they reference the exact same station and event information — small differences in the metadata (e.g. a different number of decimal places) may lead to AIMBAT treating seismograms as belonging to different events or stations.
Deleting items
All of the above happens transparently to the user, but there are some things to be mindful of when it comes to deleting items from a project:
- Deleting1 an event or station from a project will remove all related seismograms.
- Conversely, deleting a seismogram will not remove the event or station. This remains true even if an event or station end up not being used by any seismograms in the project.
Tip
If this all seems overly complicated to you, remember that often parameters that apply to all seismograms of an event need to be changed to the same value. Organising the data like this means we only need to change the parameters in one place. And there are some additional benefits when setting things up this way!
Project file
If the above section sounded a bit "databasey" to you, that is because you are
spot on! AIMBAT projects consist of a single
sqlite file (which is
automatically generated when a new project is created). This file contains a
database to manage all aspects of an AIMBAT project. Understanding the
internals of this file (or all the tables used in the database) is not
particularly important for normal usage, though it might be useful to look at
the data directly in cases where AIMBAT behaves in unexpected ways (e.g. due to
inconsistencies in the seismogram files used as input). To do this we suggest

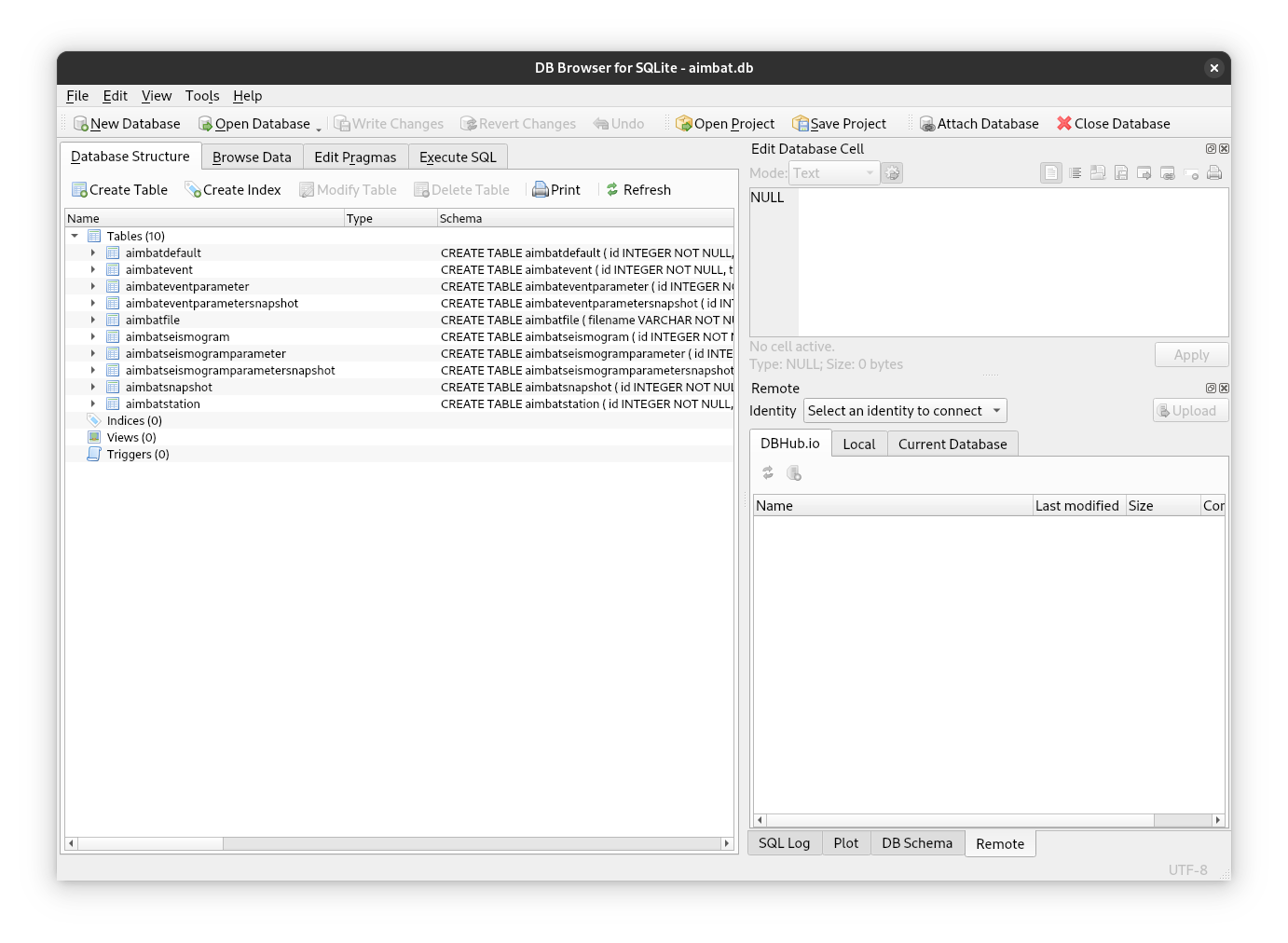

viewing the database in tools such as
DB Browser for SQLite.
Parameters
As alluded to above, there is a hierarchy to how data are structured in AIMBAT, and a major benefit of this is that parameters can be applied at different levels. Thus there are three tiers of parameters that control behaviour and processing:
- AIMBAT defaults: shared across all events and seismograms in a project.
- Event parameters: specific to an event (or shared across all seismograms of that event).
- Seismogram parameters: specific to a single seismogram.
AIMBAT Defaults
AIMBAT defaults are global settings that control how
the application itself behaves, as well as defaults for
event and seismogram parameters
when they are instantiated. The currently used values for these parameters can
be listed by running aimbat utils settings in the terminal. As some
settings are relevant before a project is created, they cannot be stored in
the project file.
Event Parameters
Event parameters are used during processing. They are parameters that are
specific to an event (e.g. if an event should be marked as completed), or
parameters that are shared across all seismograms of that event (e.g. time
window for the cross-correlation, filter parameters, etc.).
These parameters are attributes of the
AimbatEventParametersBase
class.
Seismogram Parameters
Seismogram parameters are also used during processing. Most notably the time
picks belong to this tier. These parameters are attributes of the
AimbatSeismogramParametersBase
class.
Snapshots
The event and seismogram parameters are stored separately from the events and seismograms (much like the seismograms link to an event and station instead of saving them in the same object). This opens up the possibility to save an arbitrary number of copies of these parameters that capture the current state of processing. This allows for risk-free experimentation with different parameters - if something goes wrong, you can always roll back to the last (or any other) snapshot.
Tip
It is always a good idea to create a snapshot right after importing new data!
UUID (Universally Unique Identifiers)
Internally, the items in a project use UUIDs to identify themselves. They look something like this:
The length and randomness of these identifiers guarantee no two items will ever have the same ID (even if generated on two separate computers, in different databases etc.), but they are a bit unwieldy to use directly. To make things easier, they are typically presented in a truncated form to the user (but always long enough to be unique). For example, if there are only four seismograms and they have these UUIDS:
6a4acdf7-6c7b-4523-aaaa-0a674cdc5f2d
647568aa-8361-45ef-bfc8-61f873847f17
c980918d-106d-44d9-a3fa-5740f58edf4e
5dcb5c4b-b416-4a7b-870f-9a8da42a7dd2
they can still be unambiguously identified using only the first two characters:
If two characters are insufficient, then three will be used, and so on.
-
Deleting items from a project simply drops them from the project. AIMBAT will never delete (or modify) any files. ↩
